[dn42] AS4242420263 under the hood - more POPs, full mesh network and auto-peering service

Posted on Jun 4, 2025

This post describes the internals of my current dn42 network, with the extension from 2 to 4 POPs, and last but not least, the creation of a SSH-based auto-peering service. This post will be edited and kept up-to-date in the future.

New POP servers

I’ve used STARDUST1-S cloud instances from Scaleway to create two new POPs and extend my network. Each instance cost around 1€/month in IPv6-only, opting out of IPv4 reduces cloud operating costs. These new servers are also managed by Terraform and Ansible.

LocationHostnameHost
Amsterdam (NL)nl-ams1.flap42.euScaleway, dedibox/libvirt
Amsterdam (NL)nl-ams2.flap42.euScaleway, dedibox/libvirt
Paris (FR)fr-par1.flap42.euScaleway, cloud
Warsaw (PL)pl-war1.flap42.euScaleway, cloud

Full-mesh network with Wireguard

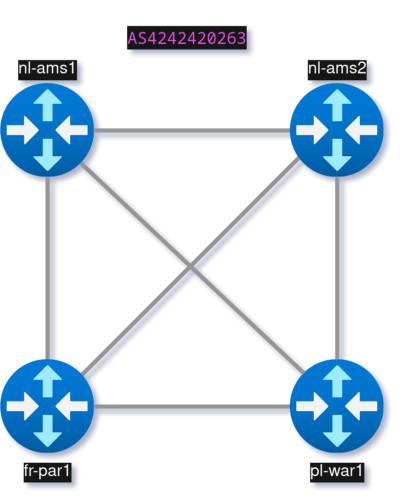

AS4242420263 Full-mesh network

All network links are created with Wireguard. All configuration files are generated with Ansible by iterating on the inventory. The generated configuration files are backed-up in the git repository dn42-as4242420263, in the directories servers/*/wireguard (in example for fr-par1).

Each POP is assigned with an IPv6 and IPv4 subnet.

HostnameIPv6 NetworkIPv6 GatewayIPv4 NetworkIPv4 Gateway
nl-ams1fd28:7515:7d51:a::/64fd28:7515:7d51:a::1172.22.144.160/29172.22.144.161
nl-ams2fd28:7515:7d51:b::/64fd28:7515:7d51:b::1172.22.144.168/29172.22.144.169
fr-par1fd28:7515:7d51:c::/64fd28:7515:7d51:c::1172.22.144.176/29172.22.144.177
pl-war1fd28:7515:7d51:d::/64fd28:7515:7d51:d::1172.22.144.184/29172.22.144.185

Bird configuration

As usual, the whole bird configuration for all POPs is backed-up in the git repository dn42-as4242420263in the directories common/bird and servers/*/bird.

  • babel (IGP) is configured on all the interfaces of the full-mesh network (wg-int-*). See the bird.conf file here.
  • All [i|e]BGP session files are either written manually or generated by the auto-peering service. They can be found in the directories servers/*/bird/bgp_peers.

Auto-peering service

My dn42 POPs feature a new “auto-peering” service written in Python, which consists of a custom shell served via SSH. This allows dn42 members to request and manage peering sessions via SSH with the following POP: nl-ams2, fr-par1, pl-war1.

This service is free software, distributed on github under MIT license.

It implements:

  • a SSH daemon, using Paramiko - it uses the dn42 registry as its source of authentication
  • a custom shell implementing these commands:
    • peer_list - list your existing peering sessions.
    • peer_create - create a new peering session interactively
    • peer_remove - remove an existing peering session
    • peer_config - show the configuration for an existing peering session
    • peer_status - print the current status of a peering session.

Under the hood, it uses:

  • Paramiko for the SSH protocol implementation
  • Python Rich, for the console styles, boxes, tables
  • SQLite, to store the peering sessions information in a database
  • A shell script called by a systemd timer every 5 minutes, to read the SQLite database and maintain the peering sessions configuration files on the system

Users can connect to all servers (except nl-ams1) via SSH, using their maintainer name with the -MNT suffix as username, and port 4242.

Example:

$ ssh gyptazy@nl-ams2.flap42.eu -p 4242
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
                   ██                                      ████   ████
                  ░██                                     █░░░ █ █░░░ █
         ███████  ░██        ██████   ██████████   ██████░    ░█░█ ██░█
        ░░██░░░██ ░██ █████ ░░░░░░██ ░░██░░██░░██ ██░░░░    ███ ░█░█ ░█
         ░██  ░██ ░██░░░░░   ███████  ░██ ░██ ░██░░█████   █░░  ░█░ ██
         ░██  ░██ ░██       ██░░░░██  ░██ ░██ ░██ ░░░░░██ █     ░█ ░░
         ███  ░██ ███      ░░████████ ███ ░██ ░██ ██████ ░██████░ █████
        ░░░   ░░ ░░░        ░░░░░░░░ ░░░  ░░  ░░ ░░░░░░  ░░░░░░  ░░░░░
    █     █████    ██   ████     ██   ████     ██   ████   ████   ████   ████   ████
   ███   █░░░░    █░█  █░░░ █   █░█  █░░░ █   █░█  █░░░ █ █░░░██ █░░░ █ █░░░ █ █░░░ █
  ██░██ ░█       █ ░█ ░    ░█  █ ░█ ░    ░█  █ ░█ ░    ░█░█  █░█░    ░█░█   ░ ░    ░█
 ██ ░░██░██████ ██████   ███  ██████   ███  ██████   ███ ░█ █ ░█   ███ ░█████    ███
 ███████░░░░░██░░░░░█   █░░  ░░░░░█   █░░  ░░░░░█   █░░  ░██  ░█  █░░  ░█░░░ █  ░░░ █
░█░░░░░█    ░██    ░█  █         ░█  █         ░█  █     ░█   ░█ █     ░█   ░█ █   ░█
░█    ░█ █████     ░█ ░██████    ░█ ░██████    ░█ ░██████░ ████ ░██████░ ████ ░ ████
░     ░░░░░░░      ░  ░░░░░░     ░  ░░░░░░     ░  ░░░░░░  ░░░░  ░░░░░░  ░░░░   ░░░░
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
 ▶ FlipFlapNet Home page ┄┄┄┄┄┄┄┄┄┄┄┄ https://hcartiaux.github.io/dn42
 ▶ Pop configuration ┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄ https://github.com/hcartiaux/dn42-as4242420263
 ▶ SSH server source ┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄ https://github.com/hcartiaux/dn42-sshd-autopeer
 ▶ Contact (mail) ┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄ hyacinthe.cartiaux@gmail.com
 ▶ Contact (matrix) ┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄ @hyacinthe:bsd.cafe
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Welcome to Flip Flap Network (AS4242420263) automated peering service
You are connected as GYPTAZY-MNT to nl-ams2.flap42.eu @ AS4242420263

┏━━━━━━━━━━━━━━━━━━━┓
┃ Your AS number(s) ┃
┡━━━━━━━━━━━━━━━━━━━┩
42424235884242421344└───────────────────┘

Use this shell to configure your BGP peering session.

Type help or ? to list commands.

AS4242420263> help

Documented commands (type help <topic>):
========================================
bye  help  intro  peer_config  peer_create  peer_list  peer_remove  peer_status


AS4242420263> peer_list

                         Your existing peering sessions
┏━━━━━━━━━━━━┳━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
┃            ┃ Wireguard ┃                                         ┃               ┃
┃            ┃ public    ┃                                         ┃               ┃
┃ AS number  ┃ key       ┃ Endpoint address                        ┃ Endpoint port ┃
┡━━━━━━━━━━━━╇━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
4242421344 │ RE+6…     │ 2a02:3100:3e6f:d100:250a:3f69:c3d4:8da8 │ 56111└────────────┴───────────┴─────────────────────────────────────────┴───────────────┘

AS4242420263> peer_status

 $ # Configuration generator timer
 $ systemctl list-timers dn42-genconfig
 NEXT                         LEFT     LAST                         PASSED
 UNIT                 ACTIVATES
 Wed 2025-06-04 14:55:37 CEST 58s left Wed 2025-06-04 14:50:37 CEST 4min 1s ago
 dn42-genconfig.timer dn42-genconfig.service

 1 timers listed.
 Pass --all to see loaded but inactive timers, too.

 $ # Wireguard interface
 $ wg show wg-as4242421344
 interface: wg-as4242421344
   public key: C3Wlu6y+v84FN/vreuTqL6r5wEtGTMXX5rKgHkxDaTI=
   private key: (hidden)
   listening port: 52001

 peer: RE+****************************************=
   endpoint: [2a02:**********************************]:42424
   allowed ips: 172.16.0.0/12, 10.0.0.0/8, fd00::/8, fe80::/10
   latest handshake: 15 seconds ago
   transfer: 263.94 MiB received, 259.14 MiB sent
   persistent keepalive: every 30 seconds

 $ # Bird BGP session
 $ birdc show protocols all ebgp_as4242421344_v6
 BIRD 2.0.12 ready.
 Name       Proto      Table      State  Since         Info
 ebgp_as4242421344_v6 BGP    ---        up     2025-05-28    Established
   BGP state:          Established
      Neighbor address: fe80:263::2:1%wg-as4242421344
      Neighbor AS:      4242421344
      Local AS:         4242420263
      Neighbor ID:      172.22.130.225
   ...
   Channel ipv4
     State:          UP
     Table:          master4
     Preference:     100
     Input filter:   (unnamed)
     Output filter:  (unnamed)
     Import limit:   9000
       Action:       block
     Routes:         747 imported, 610 exported, 144 preferred
     Route change stats:     received   rejected   filtered    ignored   accepted
       Import updates:         849659          0         16      81081     768562
       Import withdraws:          826          0        ---        131        695
       Export updates:         378711      31602         16        ---     347093
       Export withdraws:          783        ---        ---        ---      20159
     BGP Next hop:   :: fe80::106
   Channel ipv6
     State:          UP
     Table:          master6
     Preference:     100
     Input filter:   (unnamed)
     Output filter:  (unnamed)
     Import limit:   9000
       Action:       block
     Routes:         816 imported, 669 exported, 152 preferred
     Route change stats:     received   rejected   filtered    ignored   accepted
       Import updates:         341761          0         49      11176     330536
       Import withdraws:         1265          0        ---        137       1128
       Export updates:         446375      22160         16        ---     424199
       Export withdraws:         2093        ---        ---        ---      21418
     BGP Next hop:   :: fe80:263::1:1


AS4242420263> peer_config
┏━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃ Link config.       ┃ AS4242421344                                 ┃
┡━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│ Wg pub key         │ RE+****************************************=│ Wg Endpoint addr.2a02:**********************************│ Wg Endpoint port   │ 42424│ Link-local address │ fe80:0263::2:1└────────────────────┴──────────────────────────────────────────────┘
┏━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃ Link config.       ┃ AS4242420263                                 ┃
┡━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│ Wg pub key         │ C3Wlu6y+v84FN/vreuTqL6r5wEtGTMXX5rKgHkxDaTI=│ Wg Endpoint addr.  │ nl-ams2.flap42.eu                            │
│ Wg Endpoint port   │ 52001│ Link-local address │ fe80:0263::1:1└────────────────────┴──────────────────────────────────────────────┘

Wireguard configuration for AS4242421344


 [Interface]
 PrivateKey = **REPLACEME**
 ListenPort = 42424
 PostUp = /sbin/ip addr add dev %i fe80:0263::2:1/128 peer fe80:0263::1:1/128
 Table = off

 [Peer]
 PublicKey = C3Wlu6y+v84FN/vreuTqL6r5wEtGTMXX5rKgHkxDaTI=
 Endpoint = nl-ams2.flap42.eu:52001
 PersistentKeepalive = 30
 AllowedIPs = 172.16.0.0/12, 10.0.0.0/8, fd00::/8, fe80::/10


Bird configuration for AS4242421344


 protocol bgp flipflap {
     local as 4242421344;
     neighbor fe80:0263::1:1 as 4242420263;
     path metric 1;
     interface "wg-peer-flipflap";
     ipv4 {
         extended next hop on;
         import limit 9000 action block;
         import table;
     };

     ipv6 {
         extended next hop off;
         import limit 9000 action block;
         import table;
     };
 }


AS4242420263> bye
See You, Space Cowboy!
